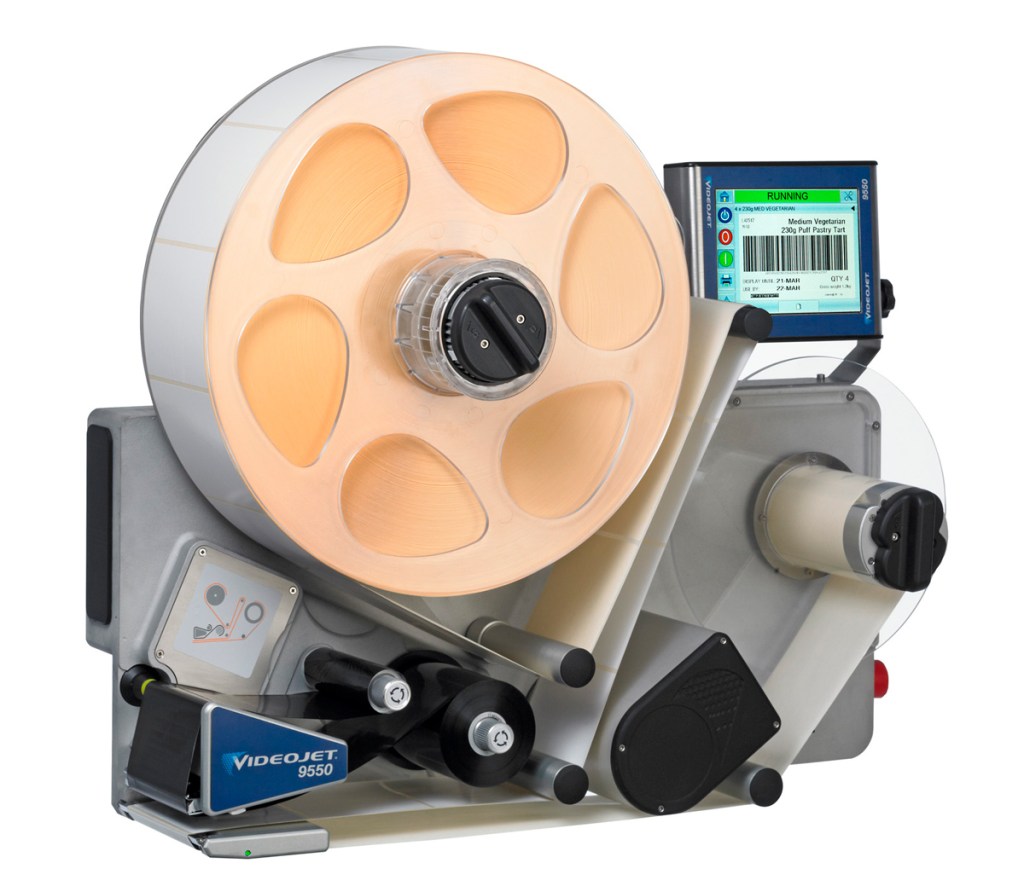

Videojet 9550 | Automatic Labeling Machine with Intelligent Motion
Print and Apply Labeler
Label Printing Machine
The 9550 with Intelligent MotionTM is a smarter print and apply labeler that targets zero unscheduled downtime and reduces costs and errors in case coding operations. Automatic, precise control of the entire system together with Direct Apply label placement, provides the most efficient and reliable labeling machine.
Contact us for New Equipment Sales: +971 50 127 8532
Specs
| Value | |
| Label Application Method | Direct Apply (standard) Other optional applicators: Telescopic tamp, Front of Pack, Rear of Corner Wrap |
| Print Technology | Thermal Transfer printing with Intelligent Motion™ Ribbon Drive or Direct Thermal Printing with 2” (53mm), 3” (76mm), 4” (107mm) and 6” (160mm) printhead versions |
| Ribbon Width | Minimum 2.2” (55mm), 3.0” (76mm), 4.3” (110mm) (standard) and 6.4″ (162mm) / Up to 830m |
| Print Resolution | 300dpi (200dpi in emulation mode) |
| Print Speed/ Throughput | <4” label width up to 500mm/sec in standard mode and up to 750mm/sec in high speed mode >4” label width up to 400mm/sec in standard mode up to 150 packs/minute with a 4”x6” label dependent on label size and application |
| Emulations | ZPL, SBPL |
| Label Width/Length/Capacity | 1.6” to 6.5” / 2.0” to 12.9” (40mm to 165mm / 50mm to 330mm) spool diameter |
| Interface | CLARiTY Controller – A single intuitive screen with on-board label database and video tutorials |
| Connectivity | Ethernet, RS232, Configurable I/O (24V, PNP and volt free) and USB |
| Certification | CE and TÜV |
Benefits
Uptime Advantage keeps productivity up and costs down
- Zero mechanical adjustments during day-to-day operation
- Optimizes maintenance labor by eliminating more than 80% of wear parts
- Never miss a label, with self-adjusting label placement to accommodate varying line speeds, throughput and package sizes
- Improve throughput during build-back with Direct Apply labeling up to 150 packs per minute for typical 4”x6” labels
- Additional applicator models (Telescopic-Tamp, Front of Pack and Corner Wrap) to fit a range of applicatons
Simple Usability keeps operators focused on production, not on the printer
- Virtually eliminate label jams and simplify set-up with Direct Apply for mainstream top or side applications
- Minimize misapplied and snapped labels with on-demand Direct Apply using no plant air
- Perform label and ribbon changes in less than 60 seconds through simple web path
- Quickly check status and select jobs with single, intuitive interface that makes operation easy
CLARiTY interface reduces operator errors, ensuring products are coded correctly
- Virtually eliminate coding errors with built-in Code Assurance software features
- Minimize operator touches with on-board label database for accurate job selection
- Automate barcode creation by linking data from multiple text fields
- On-screen diagnostics track performance and help achieve sustainable OEE improvements
Applications
Resources
Documents
Videojet 9550 Direct Apply™ Brochure
Videojet 9550 with Tamp Applicator Specification Sheet
Videojet 9550 Direct Apply™ Specification Sheet
Videojet Regular Grade Ribbons Specification Sheet
Videojet 9550 with Front of Pack Applicator Specification Sheet
Videojet 9550 with Corner Wrap Applicator Specification Sheet
Improve efficiency: switch from tamp or blow applicators to Direct ApplyTM labeling
Understanding the total cost of ownership of a print & apply labeling system
Improving performance and increasing longevity of thermal printheads
Videos
Larger print area from the 6-inch 9550 printhead
The truth behind print & apply labeling maintenance
Watch a simpler, smarter way to print & apply labels
See the future of LPA technology
Discover a single, intuitive interface that gives you more
Related Products
| Videojet 210 Label Applicator  | Videojet 9550 Print & Apply Labeler  | |
| Description | Applies pre-printed adhesive labels to a wide variety of products in low to medium duty production environments. | Print and apply label technology featuring tamp, front-of-pack, and corner-wrap applicator to meet various production needs. |
| Printing technology | N/A | Thermal Transfer with 53mm, 76mm, 107mm, and 160mm printhead versions |
| Throughput | Up to 150 packs per minute | |
| Max Line Speed | 30m/min | |
| Minimum Label Size (Width x Length) | 12 x 12mm | 40 x 50mm |
| Maximum Label Size (Width x Length ) | 104 x 500mm | 165 x 500mm |
| Capacity | Up to 300mm spool diameter (optional 400 mm) | Up to 400mm spool diameter (typically delivers over 9000 typical GS1 bar code labels per roll) |
